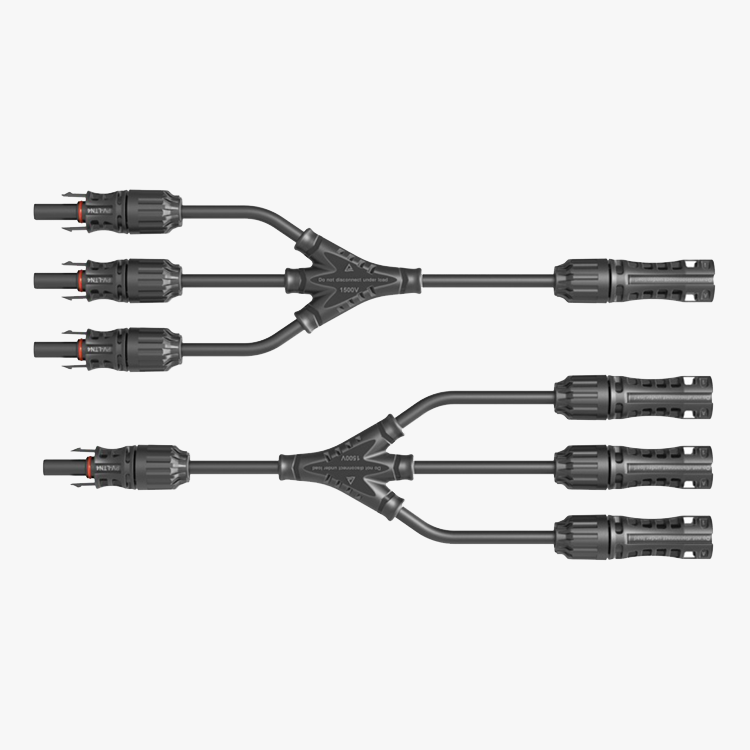

1500V 3pcs Solar Panel Parallel Connect Y3 Branch MC4 Connector

PV-LTY3-N4

PV-LTY3-N4

1500V 30A 50A MC4 Y Branch Connector,TUV CE Approve

MC4 connectors mainly includes connecting the battery board, cables, and inverter to form a complete power generation route. MC4 connectors play an important role in connecting circuits and transmitting electrical energy in photovoltaic systems, and have a crucial impact on power generation efficiency and quality.

Feature:

① Flame retardant PPO material
② 30A/50A high current design
③ Capable of connecting 1.5mm2-10mm2 photovoltaic lines
④ Nylon nuts are crack resistant and UV resistant
⑤ IP68 waterproof grade, safer for outdoor use
⑥ Can be interchangeable with 1500V photovoltaic MC4 connectors

Specification:

Model NoPV-LTY3-N4
Insulation materialsPPO/PC
Rated Current50A
Rated Voltage1500VDC
Test Voltage16KV(50Hz,Imin)
Connector contact resistance<0.5mΩ
Metal conductor materialsCopper, tin plated
Protection levelIP2X/IP68
security levelII
Flame retardant gradeUL94-V0
Upper temperature limit110°c
withdrawal force≥50N
Insertion force≤50N
Temperature range-40℃ to +85℃
Adapted wire specifications1.5~10mm²(16AWG~8AWG)

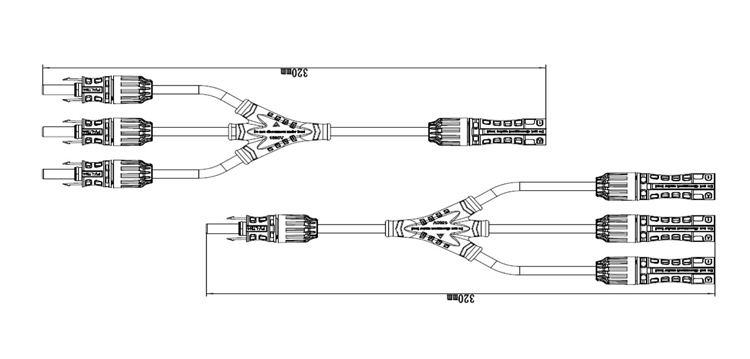

Dimensional drawing:
